востановление поврежденных голов +/ damage head unit repair

Пн ноя 25, 2013 9:15 pm

для начала нада понять структуру памяти

IPL лежит всегда с адреса 0 он и получает управление, если ножка RxD терминального порта замкнута на корпус то будет запуск диалогового меню, иначе исчет в памяти заголовоки ifs-root и fpga если заголовка fpga не находит запускает емергенси режим ifs em и fpga em.

карта 128мб одного из вариантов блоков

0x00000000 ipl 63264 из 262144 (256kb)

0x00040000 fpga 746472 из 786432 (768 кб)

0x00100000 fpga em 746472 из 786432 (768 кб)

0x001C0000 ifs em 4666284 из 6029312 (5888кб 5мб)

0x00780000 ifs-root 36866456 из 50855936 (49664кб 48мб)

0x03800000 efs ext 23068672 из 58720256 (57344кб 56мб)

0x04E00000 efs sys 20971520 из 20971520 (20480кб 20mb)

0x06200000 efs per 30408704 из 31457280 (29696kb 29mb)
0x07f00000 bios
0x08000000 end 128 mb

в диалоговом режиме можно выбрать что грузить в этот раз
если эмергенси система уцелела то грузимся в нее и пользуем команду

flashit -a 40000 -e 1000
НЕПЕРЕПУТАЙТЕ КОЛИЧЕСТВО НУЛЕЙ !!! адресс 4000 например убьет голову!!!
это сотрет заголовок FPGA и при след загрузке IPL не найдя его запустит аварийное восстановление системы. ниже хелп на flashit.

flashit - Generic flash tool (uses devf-*, fs-etfs-*) for hardware access)

flashit [-v[vvv]] [-p device] [-a address] -e size
flashit [-v[vvv]] [-p device] [-a address] -f file [-x] [-i fid] [-s seq]

Options:

-a address start address in hex the file should be flashed to
-d if set, all necessary sectors will be erased
-e size erase size number of bytes
-f file name of the file to be flashed
-l step [obsolete/not supported: stepwidth of progress procentage]
-p device path to raw flash device (default: /dev/fs0; NAND is /dev/etfs1)
-x do not verify data written
-v increase verbosity

Options specific to NAND flash:

-i fid file ID (default: 0)
-s seq sequence number (default: 0)

Example:
flashit -a 80000 -d -f w221-b1_2.ifs OR
flashit -a 0x80000 -d -f w221-b1_2.ifs

This call flashes the file w221-b1_2.ifs starting at address 0x80000.
All sectors/blocks the file covers are erased before.

flashit -p /dev/etfs1 -a 80000 -f rneg_6426.ifs OR
flashit -p /dev/etfs1 -a 0x80000 -f rneg_6426.ifs

This call flashes the file rneg_6426.ifs into NAND flash starting
at address 0x80000. All blocks the file covers are erased before.

flashit -a 80000 -e 20000 OR
flashit -a 0x80000 -e 0x20000

Erases the flash from address 0x80000 until 0xA0000.
All sectors/blocks covered by the range given are erased completely.

ImDarius · Пн янв 20, 2014 11:34 am

sergeynik писал(а): если ножка RxD терминального порта замкнута на корпус то будет запуск диалогового меню.

речъ идeт об том самом Rx в углу платы ?

5 контакты от угла платы, с одной стороны платы тх с другой рх

|
|
|..._ разьем_
|_| |______| |____________

Пн янв 20, 2014 3:28 pm

да об нем

Вт янв 21, 2014 3:06 pm

DUK а че не выкладываешь свой документ по востановлению

ImDarius · Вт янв 21, 2014 3:51 pm

и так, имею два мертвых мми, один совсем дохлы, никак не отвечает на терминал, а второй вроде показывает признак жизни и успешно присоединил,
но - не могу поднять,пишет чо такой команды нету flashit , может чо не так делаю ? ето голова из Toureg, вроде rns850, но когда то всунул не тот диск ( от ауди а4) перешился но на дисплее нечего не показывал,по диагнозе отвечал, поставил в ауди а4 LCD показывал, вроде работал, не стал долго возится,поставил в угол-подумал что кому понадобится от ауди и поставлю, но один ден камуто понадобился,поставил, но както криво работал, вставил ичо раз диск и сдох совсем, восстановить как рнс850 никак не мог, через емергенси прошивал но не помогло, а родной диск не перенимал.

ДЮК · Вт янв 21, 2014 5:21 pm

sergeynik писал(а):DUK а че не выкладываешь свой документ по востановлению

Да просто пока не все нюансы напечатал + немного занят. Но выложу.

ДЮК · Вт янв 21, 2014 5:29 pm

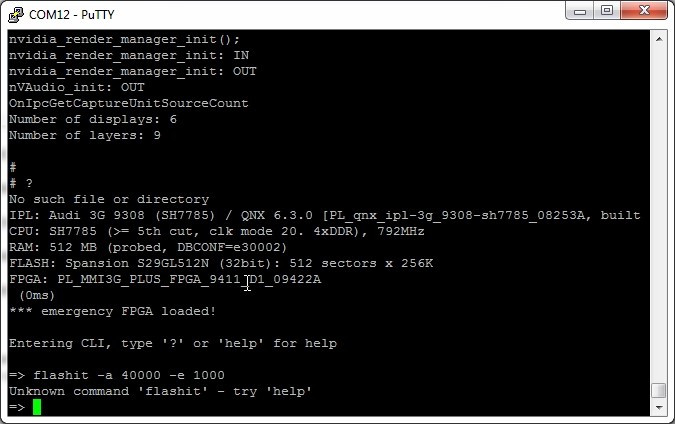

ImDarius, когда "приглашение" вот такое => - это IPL - как бы не QNX. У IPL свои команды (ты их выводил по help)
М.б. Сергей что то подскажет, но, КМК, лучше просто грузи голову без запуска IPL и выложи весь лог того, что она выдает на терминал.
Но вроде по картинке №4 у тебя ждет установки диска или карточки с прошивкой

Вт янв 21, 2014 5:45 pm

boot 1c0000
когда туда загрузится уже стирай
но прежде покажи че там ваще есть командой scan

ImDarius · Вт янв 21, 2014 6:41 pm

IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
RAM: 512 MB (probed, DBCONF=e30002)
FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
(0ms)
*** emergency FPGA loaded!

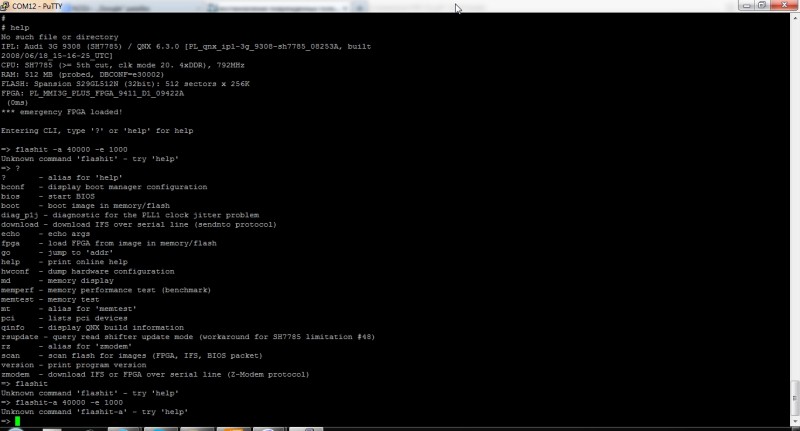

Entering CLI, type '?' or 'help' for help

=> boot 1c0000

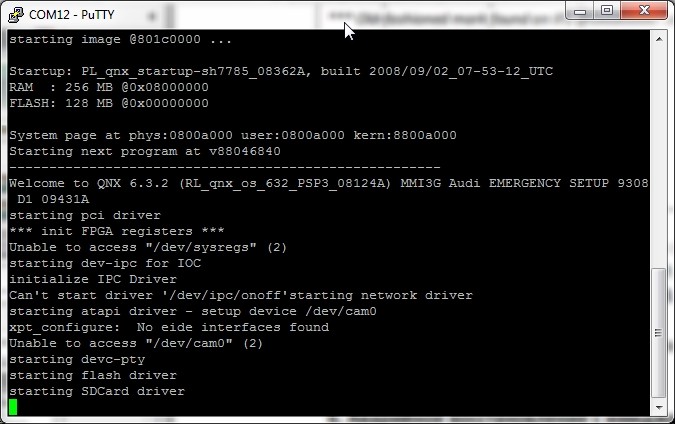

starting image @801c0000 ...

Startup: PL_qnx_startup-sh7785_08362A, built 2008/09/02_07-53-12_UTC
RAM : 256 MB @0x08000000
FLASH: 128 MB @0x00000000

System page at phys:0800a000 user:0800a000 kern:8800a000
Starting next program at v88046840
------------------------------------------------------
Welcome to QNX 6.3.2 (RL_qnx_os_632_PSP3_08124A) MMI3G Audi EMERGENCY SETUP 9308 D1 09431A
starting pci driver
*** init FPGA registers ***
Unable to access "/dev/sysregs" (2)
starting dev-ipc for IOC
initialize IPC Driver
Can't start driver '/dev/ipc/onoff'starting network driver
starting atapi driver - setup device /dev/cam0
xpt_configure: No eide interfaces found
Unable to access "/dev/cam0" (2)
starting devc-pty
starting flash driver
starting SDCard driver
Unable to access "/dev/io-net/en5" (2)
starting with no network driver
===========================================================
Emergency IFS is started. Emergency app tries to restore
the application.
===========================================================
69644 running /usr/bin/devg-NVTIRM
DMA is Disabled
dma disabled, interrupt thread priority = 100
69646 running /sbin/io-media-nvidia
69647 running /usr/sbin/io-display
69648 running /usr/apps/MMI3GEmergencyApp
===========================================================
Emergency shell started, fix your system and restart again
===========================================================

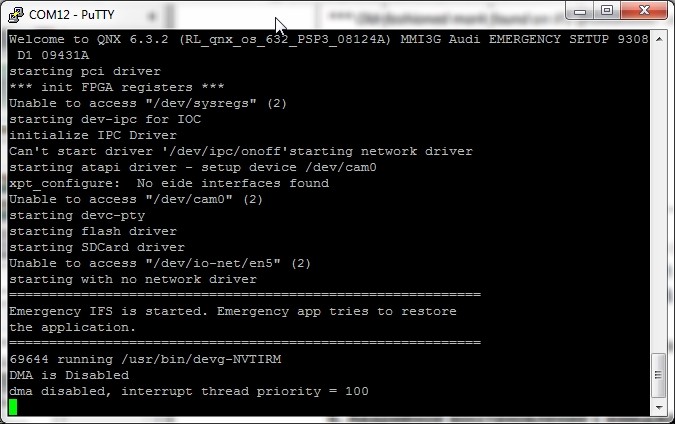

discplayer_init: IN
nvidia_render_manager_init: IN
INvmRenderManager::GetNvmRenderManager (&pRenderManager);
er = pRenderManager->Init(oConfig);
# scanhjuhyyugyugygFpga header is not 0x4744482e (0xffffffff)!
App FPGA valid 0
Emergency FPGA valid 1

COnOffIPC.cpp:41: ASSERTION failed
Disabling IOC watchdog

COnOffIPC.cpp:76: ASSERTION failed

EmergencyApp-MMI3G: version 22.30.2098, date of build 14.10.2009
pRenderManager->Open()
nvidia_render_manager_init: OUT
discplayer_init: OUT
discplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdtrackplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdnavigator_init
created navigator control point with 8249288
mixer_init: IN
mixer_init: OUT
NvTRACELEVEL set to 3 (Level Info)
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
installing audio decoders
installing video decoders
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
OnIpcGetCaptureUnitSourceCount
Number of displays: 6
Number of layers: 9

ImDarius · Вт янв 21, 2014 6:41 pm

IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
RAM: 512 MB (probed, DBCONF=e30002)
FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
(0ms)
*** emergency FPGA loaded!

Entering CLI, type '?' or 'help' for help

=> scan
** @0x80100000: FPGA

total size: 746480 [0x0b63f0]
data: 746212 [0x0b62e4]

.FDR = PL_MMI3G_PLUS_FPGA_9411_D1_09422A

.FDU = Userinfos zu FPGA 9411_D1_4010_14lw

** @0x801c0000: IFS [vers.1, UCL, old EMERGENCY]

total size: 4666284 [0x4733ac]
- header: 256
- startup: 53512
- imagefs: 11565604

RAM: 11619116 [0xb14b2c]

** @0x80780000: IFS [vers.1, LZO, old APPLICATION]

total size:36867924 [0x2328f54]
- header: 256
- startup: 53512
- imagefs: 85872380

RAM: 85925892 [0x51f2004]

=== DATA CHECKSUM ERROR! ===

** @0x87f00000: BIOS packet

total size: 786432 [0x0c0000]

BIOS pattern: FFFFFF7F.FFFFFFFF
App. pattern: FFFFFF7F.FFFFFFFF

=> IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
Unknown command 'IPL:' - try 'help'
=> CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
Unknown command 'CPU:' - try 'help'
=> RAM: 512 MB (probed, DBCONF=e30002)
Unknown command 'RAM:' - try 'help'
=> FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
Unknown command 'FLASH:' - try 'help'
=> FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Unknown command 'FPGA:' - try 'help'
=> (0ms)
Unknown command '(0ms)' - try 'help'
=> *** emergency FPGA loaded!
Unknown command '***' - try 'help'
=>
=> Entering CLI, type '?' or 'help' for help
Unknown command 'Entering' - try 'help'
=>
=> => scan
Unknown command '=>' - try 'help'
=> ** @0x80100000: FPGA
Unknown command '**' - try 'help'
=>
=> total size: 746480 [0x0b63f0]
Unknown command 'total' - try 'help'
=> data: 746212 [0x0b62e4]
Unknown command 'data:' - try 'help'
=>
=> .FDR = PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Unknown command '.FDR' - try 'help'
=>
=> .FDU = Userinfos zu FPGA 9411_D1_4010_14lw
Unknown command '.FDU' - try 'help'
=>
=> ** @0x801c0000: IFS [vers.1, UCL, old EMERGENCY]
Unknown command '**' - try 'help'
=>
=> total size: 4666284 [0x4733ac]
Unknown command 'total' - try 'help'
=> - header: 256
Unknown command '-' - try 'help'
=> - startup: 53512
Unknown command '-' - try 'help'
=> - imagefs: 11565604
Unknown command '-' - try 'help'
=>
=> RAM: 11619116 [0xb14b2c]
Unknown command 'RAM:' - try 'help'
=>
=> ** @0x80780000: IFS [vers.1, LZO, old APPLICATION]
Unknown command '**' - try 'help'
=>
=> total size:36867924 [0x2328f54]
Unknown command 'total' - try 'help'
=> - header: 256
Unknown command '-' - try 'help'
=> - startup: 53512
Unknown command '-' - try 'help'
=> - imagefs: 85872380
Unknown command '-' - try 'help'
=>
=> RAM: 85925892 [0x51f2004]
Unknown command 'RAM:' - try 'help'
=>
=> === DATA CHECKSUM ERROR! ===
Unknown command '===' - try 'help'
=>
=> ** @0x87f00000: BIOS packet
Unknown command '**' - try 'help'
=>
=> total size: 786432 [0x0c0000]
Unknown command 'total' - try 'help'
=>
=> BIOS pattern: FFFFFF7F.FFFFFFFF
Unknown command 'BIOS' - try 'help'
=> App. pattern: FFFFFF7F.FFFFFFFF
Unknown command 'App.' - try 'help'
=>

ImDarius · Вт янв 21, 2014 6:43 pm

вроде сторл ?
IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
RAM: 512 MB (probed, DBCONF=e30002)
FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
(0ms)
*** emergency FPGA loaded!

Entering CLI, type '?' or 'help' for help

=> scan
** @0x80100000: FPGA

total size: 746480 [0x0b63f0]
data: 746212 [0x0b62e4]

.FDR = PL_MMI3G_PLUS_FPGA_9411_D1_09422A

.FDU = Userinfos zu FPGA 9411_D1_4010_14lw

** @0x801c0000: IFS [vers.1, UCL, old EMERGENCY]

total size: 4666284 [0x4733ac]
- header: 256
- startup: 53512
- imagefs: 11565604

RAM: 11619116 [0xb14b2c]

** @0x80780000: IFS [vers.1, LZO, old APPLICATION]

total size:36867924 [0x2328f54]
- header: 256
- startup: 53512
- imagefs: 85872380

RAM: 85925892 [0x51f2004]

=== DATA CHECKSUM ERROR! ===

** @0x87f00000: BIOS packet

total size: 786432 [0x0c0000]

BIOS pattern: FFFFFF7F.FFFFFFFF
App. pattern: FFFFFF7F.FFFFFFFF

=> IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
Unknown command 'IPL:' - try 'help'
=> CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
Unknown command 'CPU:' - try 'help'
=> RAM: 512 MB (probed, DBCONF=e30002)
Unknown command 'RAM:' - try 'help'
=> FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
Unknown command 'FLASH:' - try 'help'
=> FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Unknown command 'FPGA:' - try 'help'
=> (0ms)
Unknown command '(0ms)' - try 'help'
=> *** emergency FPGA loaded!
Unknown command '***' - try 'help'
=>
=> Entering CLI, type '?' or 'help' for help
Unknown command 'Entering' - try 'help'
=>
=> => scan
Unknown command '=>' - try 'help'
=> ** @0x80100000: FPGA
Unknown command '**' - try 'help'
=>
=> total size: 746480 [0x0b63f0]
Unknown command 'total' - try 'help'
=> data: 746212 [0x0b62e4]
Unknown command 'data:' - try 'help'
=>
=> .FDR = PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Unknown command '.FDR' - try 'help'
=>
=> .FDU = Userinfos zu FPGA 9411_D1_4010_14lw
Unknown command '.FDU' - try 'help'
=>
=> ** @0x801c0000: IFS [vers.1, UCL, old EMERGENCY]
Unknown command '**' - try 'help'
=>
=> total size: 4666284 [0x4733ac]
Unknown command 'total' - try 'help'
=> - header: 256
Unknown command '-' - try 'help'
=> - startup: 53512
Unknown command '-' - try 'help'
=> - imagefs: 11565604
Unknown command '-' - try 'help'
=>
=> RAM: 11619116 [0xb14b2c]
Unknown command 'RAM:' - try 'help'
=>
=> ** @0x80780000: IFS [vers.1, LZO, old APPLICATION]
Unknown command '**' - try 'help'
=>
=> total size:36867924 [0x2328f54]
Unknown command 'total' - try 'help'
=> - header: 256
Unknown command '-' - try 'help'
=> - startup: 53512
Unknown command '-' - try 'help'
=> - imagefs: 85872380
Unknown command '-' - try 'help'
=>
=> RAM: 85925892 [0x51f2004]
Unknown command 'RAM:' - try 'help'
=>
=> === DATA CHECKSUM ERROR! ===
Unknown command '===' - try 'help'
=>
=> ** @0x87f00000: BIOS packet
Unknown command '**' - try 'help'
=>
=> total size: 786432 [0x0c0000]
Unknown command 'total' - try 'help'
=>
=> BIOS pattern: FFFFFF7F.FFFFFFFF
Unknown command 'BIOS' - try 'help'
=> App. pattern: FFFFFF7F.FFFFFFFF
Unknown command 'App.' - try 'help'
=>
=> boot 1c0000
starting image @801c0000 ...

Startup: PL_qnx_startup-sh7785_08362A, built 2008/09/02_07-53-12_UTC
RAM : 256 MB @0x08000000
FLASH: 128 MB @0x00000000

System page at phys:0800a000 user:0800a000 kern:8800a000
Starting next program at v88046840
------------------------------------------------------
Welcome to QNX 6.3.2 (RL_qnx_os_632_PSP3_08124A) MMI3G Audi EMERGENCY SETUP 9308 D1 09431A
starting pci driver
*** init FPGA registers ***
Unable to access "/dev/sysregs" (2)
starting dev-ipc for IOC
initialize IPC Driver
Can't start driver '/dev/ipc/onoff'starting network driver
starting atapi driver - setup device /dev/cam0
xpt_configure: No eide interfaces found
Unable to access "/dev/cam0" (2)
starting devc-pty
starting flash driver
starting SDCard driver
Unable to access "/dev/io-net/en5" (2)
starting with no network driver
===========================================================
Emergency IFS is started. Emergency app tries to restore
the application.
===========================================================
69644 running /usr/bin/devg-NVTIRM
DMA is Disabled
dma disabled, interrupt thread priority = 100
69646 running /sbin/io-media-nvidia
69647 running /usr/sbin/io-display
69648 running /usr/apps/MMI3GEmergencyApp
===========================================================
Emergency shell started, fix your system and restart again
===========================================================
discplayer_init: IN
nvidia_render_manager_init: IN
INvmRenderManager::GetNvmRenderManager (&pRenderManager);
er = pRenderManager->Init(oConfig);
# help
No such file or directory
# Fpga header is not 0x4744482e (0xffffffff)!
App FPGA valid 0
Emergency FPGA valid 1

COnOffIPC.cpp:41: ASSERTION failed
Disabling IOC watchdog

COnOffIPC.cpp:76: ASSERTION failed

EmergencyApp-MMI3G: version 22.30.2098, date of build 14.10.2009
pRenderManager->Open()
nvidia_render_manager_init: OUT
discplayer_init: OUT
discplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdtrackplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdnavigator_init
created navigator control point with 8249288
mixer_init: IN
mixer_init: OUT
NvTRACELEVEL set to 3 (Level Info)
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
installing audio decoders
installing video decoders
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
OnIpcGetCaptureUnitSourceCount
Number of displays: 6
Number of layers: 9
help
No such file or directory
# flashit -a 40000 -e 1000
*** erasing ...
*** verifying ...
#

ImDarius · Вт янв 21, 2014 6:46 pm

после ребута
IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
RAM: 512 MB (probed, DBCONF=e30002)
FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
(0ms)
*** emergency FPGA loaded!

Entering CLI, type '?' or 'help' for help

=> scan
** @0x80100000: FPGA

total size: 746480 [0x0b63f0]
data: 746212 [0x0b62e4]

.FDR = PL_MMI3G_PLUS_FPGA_9411_D1_09422A

.FDU = Userinfos zu FPGA 9411_D1_4010_14lw

** @0x801c0000: IFS [vers.1, UCL, old EMERGENCY]

total size: 4666284 [0x4733ac]
- header: 256
- startup: 53512
- imagefs: 11565604

RAM: 11619116 [0xb14b2c]

** @0x80780000: IFS [vers.1, LZO, old APPLICATION]

total size:36867924 [0x2328f54]
- header: 256
- startup: 53512
- imagefs: 85872380

RAM: 85925892 [0x51f2004]

=== DATA CHECKSUM ERROR! ===

** @0x87f00000: BIOS packet

total size: 786432 [0x0c0000]

BIOS pattern: FFFFFF7F.FFFFFFFF
App. pattern: FFFFFF7F.FFFFFFFF

=> IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
Unknown command 'IPL:' - try 'help'
=> CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
Unknown command 'CPU:' - try 'help'
=> RAM: 512 MB (probed, DBCONF=e30002)
Unknown command 'RAM:' - try 'help'
=> FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
Unknown command 'FLASH:' - try 'help'
=> FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Unknown command 'FPGA:' - try 'help'
=> (0ms)
Unknown command '(0ms)' - try 'help'
=> *** emergency FPGA loaded!
Unknown command '***' - try 'help'
=>
=> Entering CLI, type '?' or 'help' for help
Unknown command 'Entering' - try 'help'
=>
=> => scan
Unknown command '=>' - try 'help'
=> ** @0x80100000: FPGA
Unknown command '**' - try 'help'
=>
=> total size: 746480 [0x0b63f0]
Unknown command 'total' - try 'help'
=> data: 746212 [0x0b62e4]
Unknown command 'data:' - try 'help'
=>
=> .FDR = PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Unknown command '.FDR' - try 'help'
=>
=> .FDU = Userinfos zu FPGA 9411_D1_4010_14lw
Unknown command '.FDU' - try 'help'
=>
=> ** @0x801c0000: IFS [vers.1, UCL, old EMERGENCY]
Unknown command '**' - try 'help'
=>
=> total size: 4666284 [0x4733ac]
Unknown command 'total' - try 'help'
=> - header: 256
Unknown command '-' - try 'help'
=> - startup: 53512
Unknown command '-' - try 'help'
=> - imagefs: 11565604
Unknown command '-' - try 'help'
=>
=> RAM: 11619116 [0xb14b2c]
Unknown command 'RAM:' - try 'help'
=>
=> ** @0x80780000: IFS [vers.1, LZO, old APPLICATION]
Unknown command '**' - try 'help'
=>
=> total size:36867924 [0x2328f54]
Unknown command 'total' - try 'help'
=> - header: 256
Unknown command '-' - try 'help'
=> - startup: 53512
Unknown command '-' - try 'help'
=> - imagefs: 85872380
Unknown command '-' - try 'help'
=>
=> RAM: 85925892 [0x51f2004]
Unknown command 'RAM:' - try 'help'
=>
=> === DATA CHECKSUM ERROR! ===
Unknown command '===' - try 'help'
=>
=> ** @0x87f00000: BIOS packet
Unknown command '**' - try 'help'
=>
=> total size: 786432 [0x0c0000]
Unknown command 'total' - try 'help'
=>
=> BIOS pattern: FFFFFF7F.FFFFFFFF
Unknown command 'BIOS' - try 'help'
=> App. pattern: FFFFFF7F.FFFFFFFF
Unknown command 'App.' - try 'help'
=>
=> boot 1c0000
starting image @801c0000 ...

Startup: PL_qnx_startup-sh7785_08362A, built 2008/09/02_07-53-12_UTC
RAM : 256 MB @0x08000000
FLASH: 128 MB @0x00000000

System page at phys:0800a000 user:0800a000 kern:8800a000
Starting next program at v88046840
------------------------------------------------------
Welcome to QNX 6.3.2 (RL_qnx_os_632_PSP3_08124A) MMI3G Audi EMERGENCY SETUP 9308 D1 09431A
starting pci driver
*** init FPGA registers ***
Unable to access "/dev/sysregs" (2)
starting dev-ipc for IOC
initialize IPC Driver
Can't start driver '/dev/ipc/onoff'starting network driver
starting atapi driver - setup device /dev/cam0
xpt_configure: No eide interfaces found
Unable to access "/dev/cam0" (2)
starting devc-pty
starting flash driver
starting SDCard driver
Unable to access "/dev/io-net/en5" (2)
starting with no network driver
===========================================================
Emergency IFS is started. Emergency app tries to restore
the application.
===========================================================
69644 running /usr/bin/devg-NVTIRM
DMA is Disabled
dma disabled, interrupt thread priority = 100
69646 running /sbin/io-media-nvidia
69647 running /usr/sbin/io-display
69648 running /usr/apps/MMI3GEmergencyApp
===========================================================
Emergency shell started, fix your system and restart again
===========================================================
discplayer_init: IN
nvidia_render_manager_init: IN
INvmRenderManager::GetNvmRenderManager (&pRenderManager);
er = pRenderManager->Init(oConfig);
# help
No such file or directory
# Fpga header is not 0x4744482e (0xffffffff)!
App FPGA valid 0
Emergency FPGA valid 1

COnOffIPC.cpp:41: ASSERTION failed
Disabling IOC watchdog

COnOffIPC.cpp:76: ASSERTION failed

EmergencyApp-MMI3G: version 22.30.2098, date of build 14.10.2009
pRenderManager->Open()
nvidia_render_manager_init: OUT
discplayer_init: OUT
discplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdtrackplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdnavigator_init
created navigator control point with 8249288
mixer_init: IN
mixer_init: OUT
NvTRACELEVEL set to 3 (Level Info)
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
installing audio decoders
installing video decoders
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
OnIpcGetCaptureUnitSourceCount
Number of displays: 6
Number of layers: 9
help
No such file or directory
# flashit -a 40000 -e 1000
*** erasing ...
*** verifying ...
# herlp
No such file or directory
IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
RAM: 512 MB (probed, DBCONF=e30002)
FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
(0ms)
*** emergency FPGA loaded!
*** Old-fashioned mark found on IFS @0x1c0000: .zero=0x3000001e
starting image @1c0000 ...

Startup: PL_qnx_startup-sh7785_08362A, built 2008/09/02_07-53-12_UTC
RAM : 256 MB @0x08000000
FLASH: 128 MB @0x00000000

System page at phys:0800a000 user:0800a000 kern:8800a000
Starting next program at v88046840
------------------------------------------------------
Welcome to QNX 6.3.2 (RL_qnx_os_632_PSP3_08124A) MMI3G Audi EMERGENCY SETUP 9308 D1 09431A
starting pci driver
*** init FPGA registers ***
Unable to access "/dev/sysregs" (2)
starting dev-ipc for IOC
initialize IPC Driver
Can't start driver '/dev/ipc/onoff'starting network driver
starting atapi driver - setup device /dev/cam0
xpt_configure: No eide interfaces found
Unable to access "/dev/cam0" (2)
starting devc-pty
starting flash driver
starting SDCard driver
Unable to access "/dev/io-net/en5" (2)
starting with no network driver
===========================================================
Emergency IFS is started. Emergency app tries to restore
the application.
===========================================================
69644 running /usr/bin/devg-NVTIRM
DMA is Disabled
dma disabled, interrupt thread priority = 100
69646 running /sbin/io-media-nvidia
69647 running /usr/sbin/io-display
69648 running /usr/apps/MMI3GEmergencyApp
===========================================================
Emergency shell started, fix your system and restart again
===========================================================
discplayer_init: IN
nvidia_render_manager_init: IN
INvmRenderManager::GetNvmRenderManager (&pRenderManager);
er = pRenderManager->Init(oConfig);
# Fpga header is not 0x4744482e (0xffffffff)!
App FPGA valid 0
Emergency FPGA valid 1

COnOffIPC.cpp:41: ASSERTION failed
Disabling IOC watchdog

COnOffIPC.cpp:76: ASSERTION failed

EmergencyApp-MMI3G: version 22.30.2098, date of build 14.10.2009
pRenderManager->Open()
nvidia_render_manager_init: OUT
discplayer_init: OUT
discplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdtrackplayer_init
discplayer_init: IN
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
discplayer_init: OUT
dvdnavigator_init
created navigator control point with 8249288
mixer_init: IN
mixer_init: OUT
NvTRACELEVEL set to 3 (Level Info)
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
installing audio decoders
installing video decoders
nVAudio_init: IN
nvidia_render_manager_init();
nvidia_render_manager_init: IN
nvidia_render_manager_init: OUT
nVAudio_init: OUT
OnIpcGetCaptureUnitSourceCount
Number of displays: 6
Number of layers: 9

Вт янв 21, 2014 7:15 pm

зеленый экран кажет?

ImDarius · Вт янв 21, 2014 7:23 pm

нет. темнота
что там за No eide interfaces found
загружаю cd на sd , может из карточки возмот фаилы

Вт янв 21, 2014 8:08 pm

оптика подрублена?

Вт янв 21, 2014 8:17 pm

стой это рнс850 как оно убито было. если в нее накатили ифсы от 9308 то там нада ручками драйвера стартовать ибо адреса и прерывания не те

ImDarius · Вт янв 21, 2014 8:31 pm

sergeynik писал(а):оптика подрублена?

оптика подключена

sergeynik писал(а):стой это рнс850 как оно убито было. если в нее накатили ифсы от 9308 то там нада ручками драйвера стартовать ибо адреса и прерывания не те

да, думаю просто так уже не получится, после заливки инфы от 9308 дисплай в Тоуреге уже непоказывал-но заработал в ауди , может тепер и показывает чо- но нету Тоурега под рукой. Даже по логу видно что он на половину 3г и половина 3г плус

IPL: Audi 3G 9308 (SH7785) / QNX 6.3.0 [PL_qnx_ipl-3g_9308-sh7785_08253A, built 2008/06/18_15-16-25_UTC]
CPU: SH7785 (>= 5th cut, clk mode 20. 4xDDR), 792MHz
RAM: 512 MB (probed, DBCONF=e30002)
FLASH: Spansion S29GL512N (32bit): 512 sectors x 256K
FPGA: PL_MMI3G_PLUS_FPGA_9411_D1_09422A
Но думаю если дисплеи засветился зеленым- то мми должна видется на диагнозе, но 5F всегда молчит.

Вт янв 21, 2014 9:08 pm

в этотй писаните всегда поразному ипл ваще у всех 9308. короче 2 варианта
нада ручкими цеплять дрова
грузить правельный ифс по Zmodem

ImDarius · Вт янв 21, 2014 10:08 pm

выбросить жалко, надо попытаться поднять.
смотрел Zmodem putty тоже поддерживает, как там через него, тоже через RxTx или там всо по другому ?

P.S
кстати как там с совсем мертвыми мми, может естъ на плате кокой jtag или туту толко флашку на программатор ?

Вт янв 21, 2014 10:11 pm

бга в програматор это всегда рулит.
у sh4 есть бутмоде но это к субарам ))) мне не до них.
поямодему все также тока там таймаут есть но ифс емергенси пролазит наскока помню
